Full 90° Dump Angle For 100% Expulsion of Wet, Viscous Materials, Welded Watertight

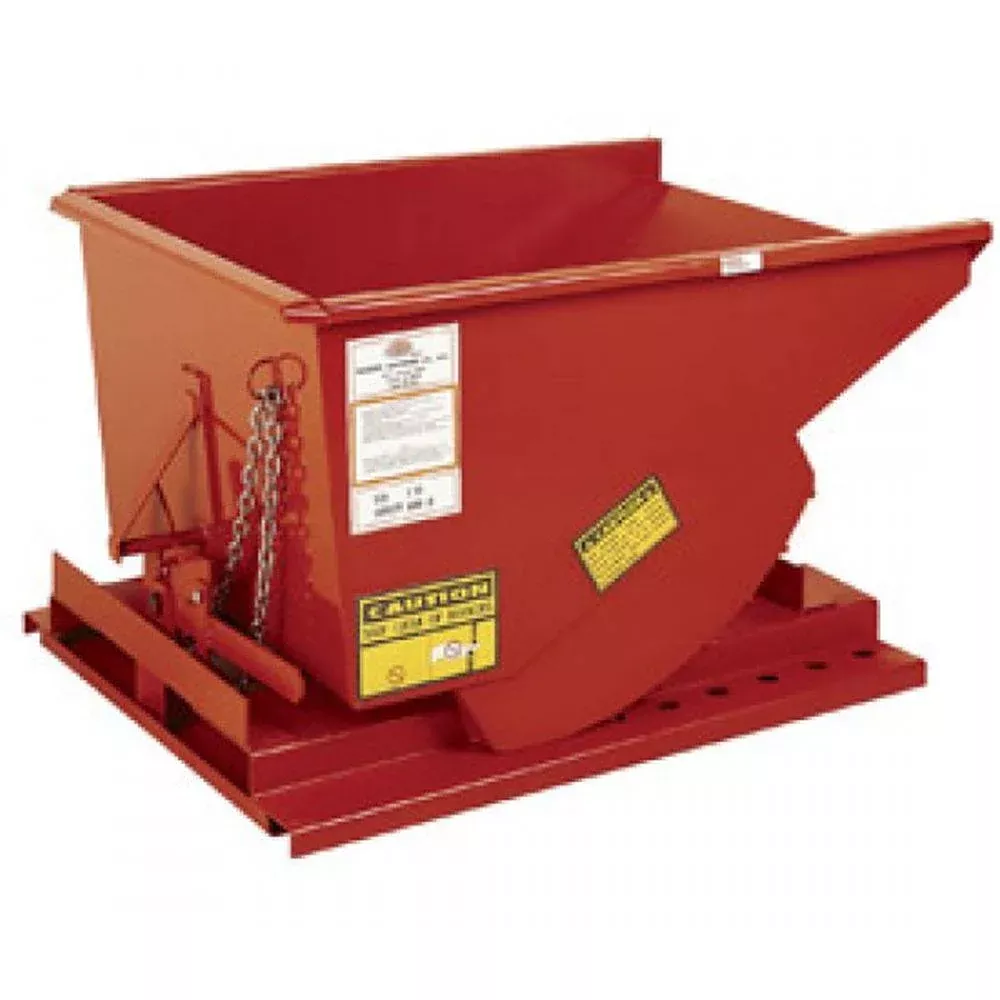

The Series 90 Self Dumping Hopper is designed for foklift handling. Easy dump release while seated on forklift, operator simply pulls the dump cable to release the spring-loaded latch for a full 90° tilt. Hopper returns to an upright position when lowered to the ground. A positive locking mechanism prevents accidental dumping while a safety chain secures the hopper to the forklift.
Available in orange or gray enamel. Hoppers will be painted orange unless otherwise specified.
Made in the USA
| Capacity | Available capacities: 2,000 lbs. 4,000 lbs. 6,000 lbs |
| Material | Available Gauge: 12-gauge 10-gauge 7-gauge |
| Model No. | SDHM, SDHH, SDHX |
| Wheel Type | Mold-On Rubber Steel Phenolic Polyurethane |
| Sizes | Available Sizes: 1/2 cubic yard of material 1 cubic yard of material and 1-1/2 cubic yard cubic yard of material |
Product Details
All configurations share the product information above. Use the SKU table to compare size and capacity and select the option that matches your application.
Available SKU Options
| SKU | Configuration Details |
| SDHM050-90 | Size: 1/2 Cubic Yard Capacity: 2000 lbs. |
| SDHH050-90 | Size: 1/2 Cubic Yard Capacity: 4000 lbs. |
| SDHX050-90 | Size: 1/2 Cubic Yard Capacity: 6000 lbs. |
| SDHM100-90 | Size: 1 Cubic Yard Capacity: 2000 lbs. |
| SDHH100-90 | Size: 1 Cubic Yard Capacity: 4000 lbs. |
| SDHX100-90 | Size: 1 Cubic Yard Capacity: 6000 lbs. |
| SDHM150-90 | Size: 1-1/2 Cubic Yard Capacity: 2000 lbs. |
| SDHH150-90 | Size: 1-1/2 Cubic Yard Capacity: 4000 lbs. |
| SDHX150-90 | Size: 1-1/2 Cubic Yard Capacity: 6000 lbs. |
